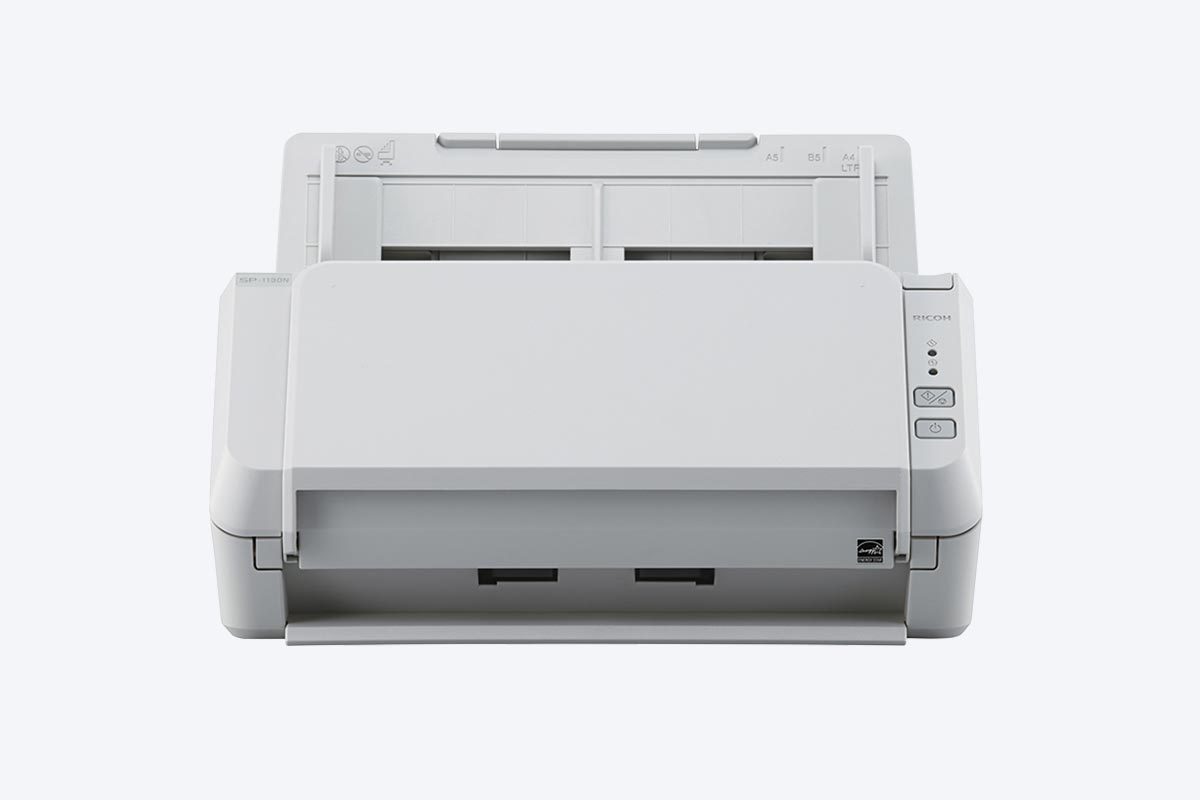

SP-1130N
Product Name: SP-1130N | Scanner Type: ADF (Automatic Document Feeder), Duplex | Scanning Speed *1 (A4 Portrait) (Color *2 /Grayscale *2 /Monochrome *3 ): Simplex: 30 ppm (200/300 dpi) Duplex: 60 ipm (200/300 dpi) | Image Sensor Type: Single line CMOS-CIS x 2 (front x 1, back x 1)
SCAN RICOH SP-1130
Technical specifications
| Product Name | SP-1130N |
|---|---|
| Scanner Type | ADF (Automatic Document Feeder), Duplex |
| Scanning Speed *1 (A4 Portrait) (Color *2 /Grayscale *2 /Monochrome *3 ) | Simplex: 30 ppm (200/300 dpi) Duplex: 60 ipm (200/300 dpi) |
| Image Sensor Type | Single line CMOS-CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED x 2 (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution *4 (Color / Grayscale / Monochrome) | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) *5 |
| Output Format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit |
| Background Colors | White |
| Document Size | Maximum 216 x 355.6 mm (8.5 x 14 in.) |
| Minimum | 52 x 74 mm (2.0 x 2.9 in.) |
| Long Page Scanning *6 | 3,048 mm (120 in.) |
| Paper Weight (Thickness) | Paper 50 to 209 g/m 2 (13.4 to 56 lb) *7 |
| Plastic Card | 0.76 mm (0.0299 in.) or less *8 |
| ADF Capacity *9*10 | 50 sheets (A4 80 g/m 2 or Letter 20 lb) |
| Expected Daily Volume *11 | 4,500 sheets |
| Multifeed Detection | Overlap detection (Ultrasonic sensor) |
| Interface | USB *12*13 USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Ethernet | 10BASE-T,100BASE-TX,1000BASE-T |
| Power Requirements | AC 100 to 240 V ±10 % |
| Power Consumption | Operating Mode 18 W or less |
| Power Saving Mode | 2 W or less |
| Auto Standby (Off) Mode | 0.3 W or less |
| Operating Environment | Temperature 5 to 35 °C (41 to 95 °F) |
| Relative Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR, RoHS |
| Dimensions *14 (W x D x H) | 298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in.) |
| Weight | 2.5 kg (5.5 lb) |
| Supported Operating System | Windows 11 *15 , Windows 10 *15 , Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS *16 , Linux (Ubuntu) *16 |
| Software / Drivers *18 | PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS™), WIA Driver *17 , Image Scanner Driver for macOS (ICA) *17 , Image Scanner Driver for Linux (SANE) *17 , PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin, Network Setup Tool for SP Series, SP Series Online Update |
| Image Processing Functions | Multi image output, Automatic color detection, Automatic page size detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Split image, De-Skew, Edge filler, Vertical streaks reduction, Digital endorser, Background pattern removal, Character thickness, Character augmentation, Character extraction |
| Included Items | AC adapter, USB cable, Setup DVD-ROM |
| Roller Set (Brake roller/Pick roller) | PA03708-0001 Every 100,000 sheets *1 |
| PaperStream Capture Pro | PA43404-B403 One year license of PaperStream Capture Pro |
| PaperStream Capture Pro Premium | PA43404-B421 One year license of PaperStream Capture Pro Premium |
