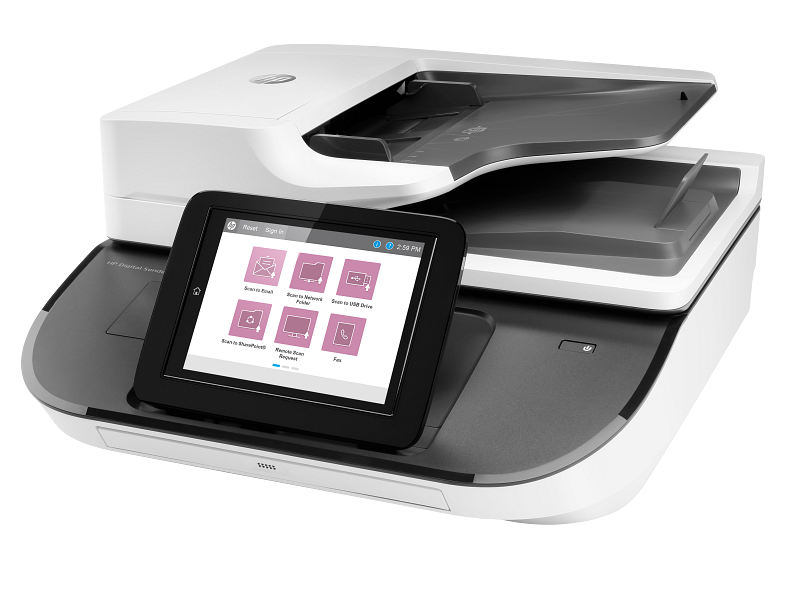

HP Digital Sender Flow 8500 fn2
Scanner type: Flatbed, ADF | Digital sending standard features: Scan to e-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL | Scan resolution, optical: Up to 600 ppi | Scan resolution, hardware: Up to 600 ppi
SCANNER HP 8500 FN 2
Technical specifications
| Scanner type | Flatbed, ADF |
|---|---|
| Digital sending standard features | Scan to e-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL |
| Scan resolution, optical | Up to 600 ppi |
| Scan resolution, hardware | Up to 600 ppi |
| Enhanced scanning resolution | Up to 600 ppi |
| Duty cycle (daily) | Recommended daily duty cycle: 10,000 pages |
| Bit depth | 24-bit (external), 30-bit (internal) |
| Automatic document feeder scan speed | Up to 100 ppm/200 ipm (black and white); Up to 100 ppm/200 ipm (colour) * |
| Scan size (ADF), maximum | 216 x 356 mm; Up to 216 x 864 mm when “long scan size” selected |
| Scan size, maximum | 216 x 356 mm |
| Scan size (ADF), minimum | 68 x 148 mm |
| Scan size, minimum | 216 x 356 mm |
| Automatic document feeder capacity | Standard, 150 sheets at 75 g/m² |
| Duplex ADF scanning | Yes |
| Scan file format | CSV; JPEG; MTIFF; PDF; PDF/A; RTF; Searchable PDF; TIFF; XPS |
| Scan input modes | Front panel applications: E-mail; Save to Network Folder; Save to USB; Save to Device Memory; Open Extensibility Platform (OXP) applications; Software scan using HP Scan Software; User application via TWAIN (32/64-bit), ISIS, WIA or Kofax VirtualRescan (VRS) Professional drivers |
| Color scanning | Yes |
| Levels of grayscale | 256 |
| Image scaling or enlargement range | 25 to 400% in 1% increments (flatbed) |
| Scan technology | Charge Coupled Device (CCD) Flatbed; Contact Image Sensor (CIS) ADF |
| Scanning options (ADF) | Single-pass duplex |
| Multifeed detection | Yes |
| Output resolution dpi settings | 75, 150, 200, 300, 400, 600, 1200 |
| Light source (scanning) | LED |
| Photographic format types | Photos up the maximum size supported by the flatbed scanner. HP does not recommend feeding photos through the ADF. Slide and negative scanning are not supported. |
| Document weight ADF (maximum) | 199 g/m² |
| Document weight ADF (minimum) | 45 g/m² |
| Media size (ADF) | Executive, Statement, A4, A5, A6, RA4, B5, B6, 100 x 150 mm, 16K (195 x 270 mm), 16K (184 x 260 mm), 16K (197 x 273 mm), Postcard JIS, D Postcard JIS, Oficio (216 x 340 mm) |
| Media types | ADF: Paper (Plain, Inkjet, Inkjet Brochure/Glossy), Photo Paper; Flatbed: All ADF Media, Envelopes, Labels, Cards, Books |
| Media weights, supported ADF | 45 to 199 g/m² |
| Scanner advanced features | Auto exposure, Auto threshold, Auto detect color, Background smooth/removal, Auto detect size, Straighten content, Enhance content, Multi-streaming, Auto feed, Multi-feed detection sensor, Auto orient, Multi-color dropout, Channel color dropout, Edge erase, Resize page, Delete blank page, Merge pages, Hole fill, PDF permissions, Document separation (Blank page, Barcode, Zonal barcode, Zonal OCR) |
| Compatible Operating Systems | Windows 11; Windows 10; Windows 8; Windows 8.1; Windows 7; macOS X 10.10 Yosemite; macOS 10.11 El Capitan; macOS 10.12 Sierra; Linux; UNIX Full solution software available only for Windows 7 and newer, UPD software available only for Windows 7 and newer HP Software for Mac and Windows is no longer included on the CD, but can be downloaded from http://www.hp.com, Legacy Windows Operating Systems (XP, Vista, and equivalent servers) get print and Scan drivers only, with a reduced feature set Windows RT OS for Tablets (32/64-bit) uses a simplified HP print driver built into the RT OS |
| Mac compatible | Yes |
| Minimum System Requirements for Macintosh | 1.3 GB available hard drive space; Internet; OS hardware requirements see http://www.apple.com for more info |
| Minimum System Requirements | 2 GB available hard disk space, OS hardware requirements see http://www.microsoft.com, or 1.3 GB available hard drive space, Internet; OS hardware requirements see http://www.apple.com for more info; For HP Scan: Windows® 10, 8.1, 8, 7: 32/64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer, 2 GHz processor, 1024 x 768 SVGA monitor |
| System requirements, recommended | Windows OS with 2 GB available hard disk space, OS hardware requirements see http://www.microsoft.com or Mac system with 1.3 GB available hard disk space; Internet; OS hardware requirements see http://www.apple.com for more info |
| Twain version | Windows: 32-bit and 64-bit TWAIN version 2.1; Mac: n/a |
| Processor speed | 1.2 GHz |
| Internal Storage | Standard, 500 GB, HP High Performance Secure Hard Disk |
| Memory | 3584 MB (2560 MB on primary board, 1024 MB on scanner processor) |
| Software included | HP browser, Mac OS Welcome Screen (Directs users to HP.com or OS App Source for printer software), Online user manuals. Download from hp.com Network TWAIN (32-bit and 64-bit), and USB TWAIN (32-bit and 64-bit) solution, WIA, Kofax VRS Pro |
| Connectivity, standard | 10/100/1000 Ethernet; 1 Hi-Speed USB Host (rear); 1 Hi-Speed USB Host (walk-up); 1 Hardware Integration Pocket (HIP) Hi-Speed USB; 1 USB-Device Port (Rear) |
| Connectivity, optional | HP Jetdirect 2900nw Print Server J8031A |
| Network ready | Standard (built-in Gigabit Ethernet) |
| Wireless capability | Optional |
| Ports | 10/100/1000 Ethernet; 1 Hi-Speed USB Host (rear); 1 Hi-Speed USB Host (walk-up); 1 Hardware Integration Pocket (HIP) Hi-Speed USB; 1 USB-Device Port (Rear) |
| Network protocols, supported | Via built-in networking solution: TCP/IP, IPv4, IPv6; Scan: Network TWAIN, WebScan (eSCL); DISCOVERY: SLP, Bonjour, Web Services Discovery; IP CONFIG: IPv4 (BootP, DHCP, AutoIP, Manual, TFTP Config, ARP-Ping), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6); Management: SNMPv2/v3, HTTP/HTTPS, Telnet, TFTP Config, FTP FW Download, Syslog; Security: SNMPv3, SSL Cert Management, Firewall, ACL, 802.1x |
| Power | Input voltage: 220 to 240 VAC, 50 Hz |
| Power supply type | Built-in power supply |
| Power consumption | 22 watts (Ready), 1.2 watts (Sleep), 0.3 watts (Off) |
| Control panel | XGA 1024 x 768 mm LCD display; Light touch technology that supports gesture based interactions; Screen brightness-adjustment control; Home icon for quick return to the UI Home Screen; Virtual keyboard and a physical keyboard |
| Operating humidity range | 15 to 80% RH |
| Recommended operating humidity range | 15 to 80% non-condensing 10 to 35ºC |
| Non-Operating Humidity Range | Up to 90% RH (non-condensing) at 30 to 60ºC |
| Recommended operating temperature range | 10 to 35°C |
| Storage temperature range | -40 to 60ºC |
| Acoustic power emissions (active, printing) | 4.3 B(A) (Idle); Operating: 7.3 B(A), ADF scan colour simplex using A4 paper at 94 ppm |
| Dimensions (W x D x H) | 512 x 585.3 x 263.4 mm |
| Maximum dimensions (W x D x H) | 512 x 695.5 x 263.4 mm |
| Weight | 17.5 kg |
| Package dimensions (W x D x H) | 599 x 396 x 731 mm |
| Package weight | 20.28 kg |
| Ecolabels | ENERGY STAR® 3.0 certified |
| Energy star certified | Yes |
| Electromagnetic compatibility | CISPR 22:2008 (International) – Class A, CISPR 32:2012 (International) – Class A, EN 55032: 2012 (EU) – Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU; Other EMC approvals as required by individual countries |
| Safety | IEC 60950-1:2005+A1:2009 +A2:2013 (International); EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013/+AC:2011 (EU); EN 62479:2010/IEC 62479:2010; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); Other safety approvals as required by individual countries |
| What’s in the box | HP Digital Sender Flow 8500 fn2 Document Capture; Hardware install guide; HP 8500 fn2 HbrCD for Mac And PC; HP user’s guide regulatory Info CD; Power cord; USB cable |
| Manufacturer Warranty | One-year Next Business Day Onsite repair warranty, phone and Web support included. Warranty may vary by country as required by law. Go to http://www.hp.com/support to learn about HP award winning service and support options in your region. |
